CO2 Fire Suppression System–Complies with NFPA standards

Our CO2 fire suppression system is designed in accordance with NFPA 12, providing a cost-effective and powerful solution for generators, transformer stations, semiconductor equipment, marine vessels, and offshore platforms.

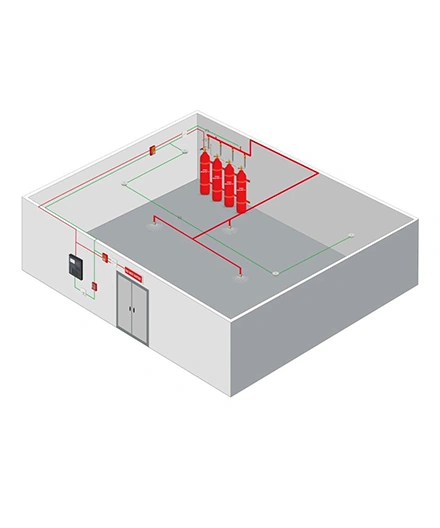

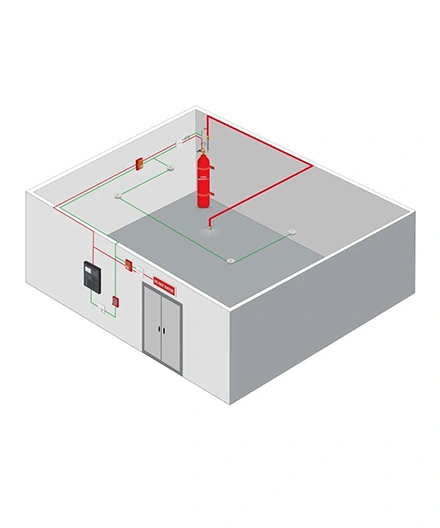

This fixed system is suitable for total flooding applications, with agent quantity calculated based on the hazard volume. It extinguishes fire by reducing oxygen levels below 15% while also cooling and absorbing heat. Primarily intended for normally unoccupied areas, it requires special safety considerations when used in occupied spaces.

CO₂ fire suppression system on white background
Technical Specifications
  • Cylinder Capacity: 68 L, 70 L, 80 L, 90 L, 100 L, 120 L, 150 L
  • Agent Fill Weight: 45 kg, 45 kg, 50 kg, 58 kg, 65 kg, 76 kg, 100 kg
  • Working Pressure: 5.7 MPa
  • Max. Working Pressure: 15 MPa
  • Discharge Time: ≤ 60 s
  • Max. Filling Ratio: 0.786 kg/L
  • Power Supply: DC 24V / 1.6 A
  • Actuation Pressure:
    • Cylinder Valve: 19 ± 0.95 MPa
    • Manifold: 15 ± 0.75 MPa
  • Driving Nitrogen Pressure: 6.0 ± 1.0 MPa (at 20 °C)
  • Ambient Conditions (Cylinder Room): 0 to 50 °C
Features
  • FM compliant
  • Software designed to nfpa 12 standards
  • Optional weighing device available
  • Discharge hose with integrated check valve to prevent backflow
Accessories

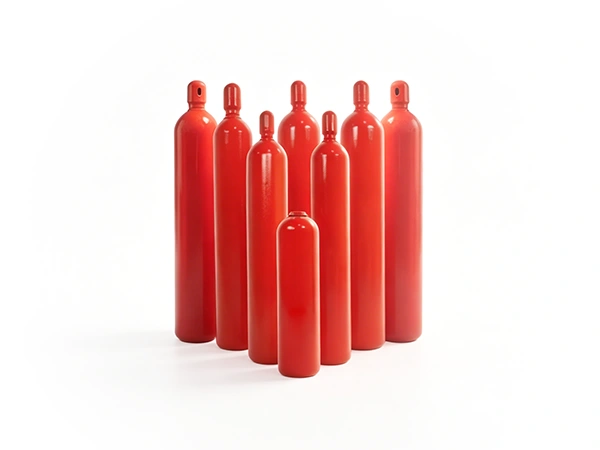

Cylinders

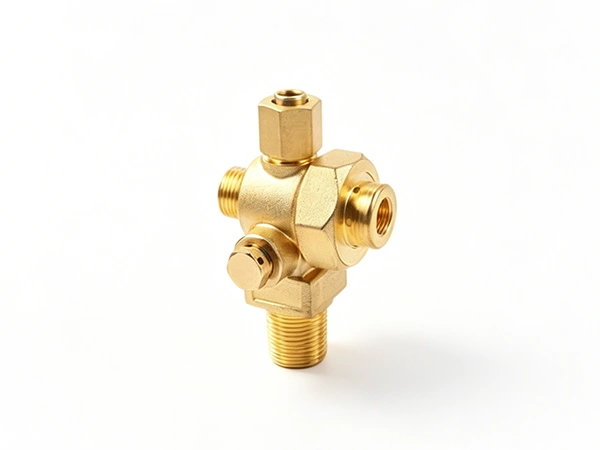

Head Valve

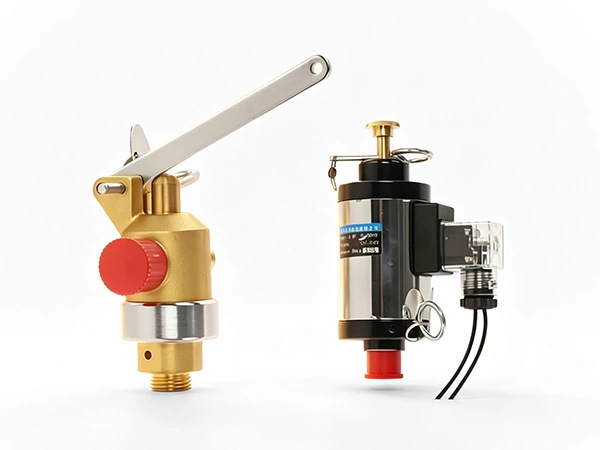

Normal Pneumatic and Soleniod Valve

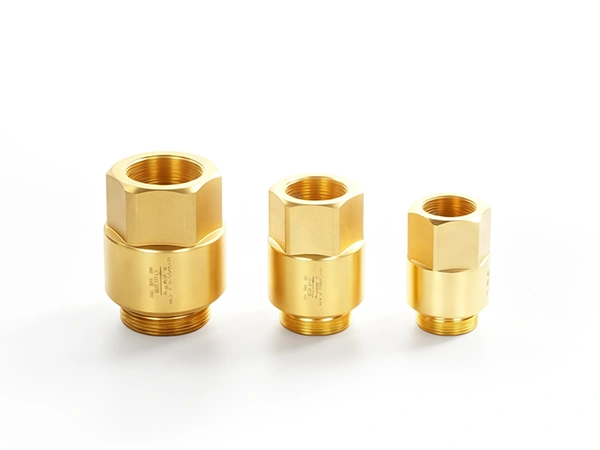

Liquid Check Valve

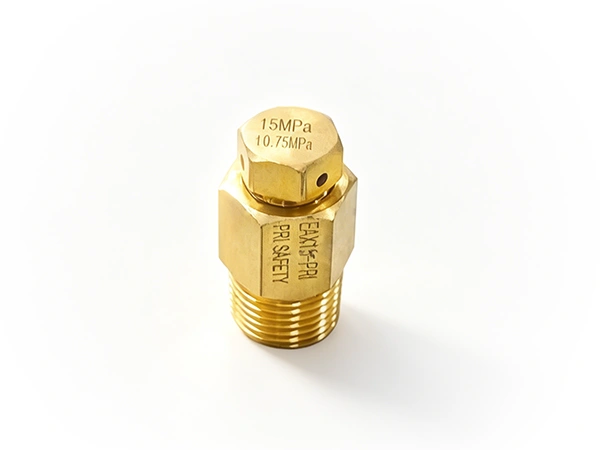

Safety Release Valve(20A)

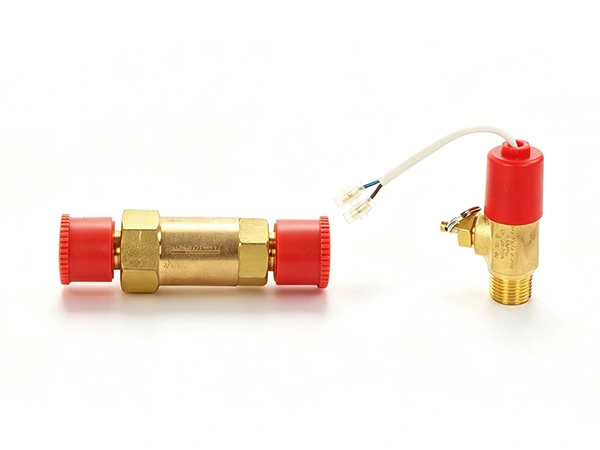

Gas Check Valve and Pressure Switch

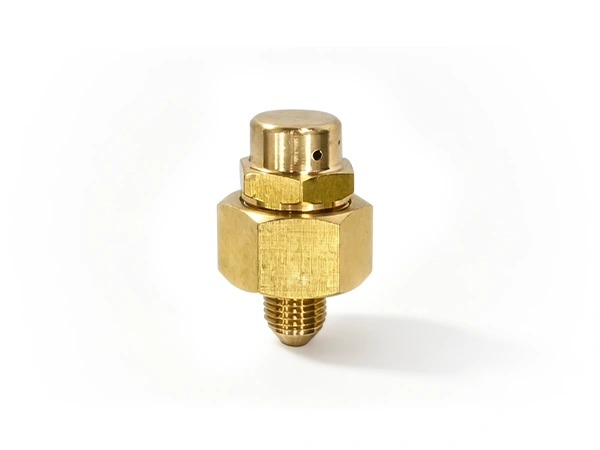

Low Relase High Close Valve

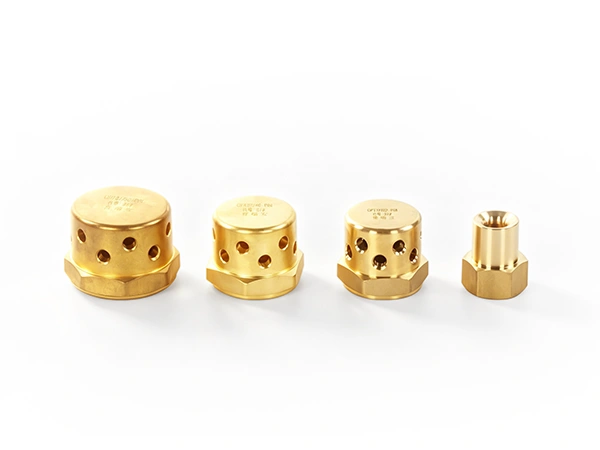

Spray Nozzles

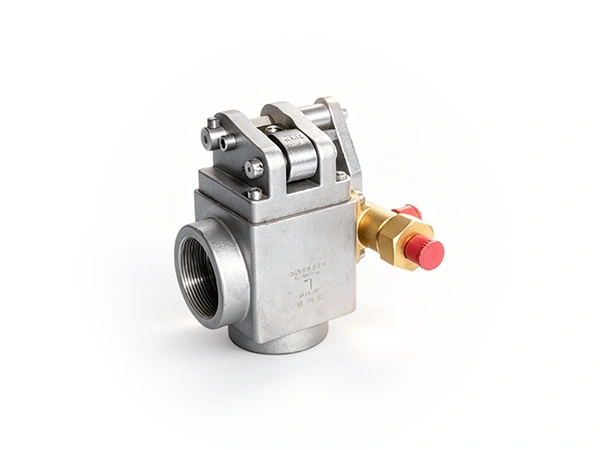

Select Valve

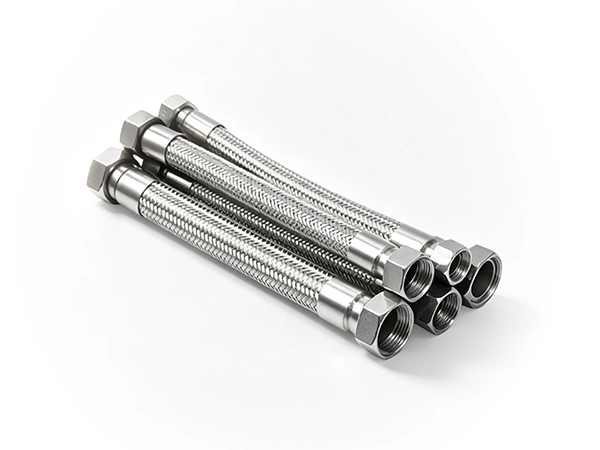

Flexible Hose
