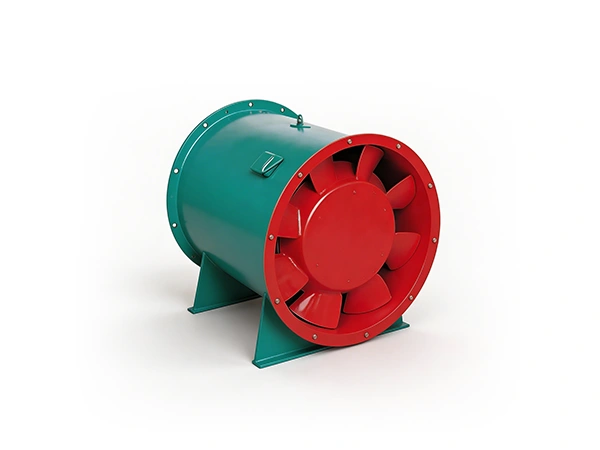

Axial Fan–High-Temp Rated, Reliable Operation

Our axial fan is a critical fire safety device, designed to rapidly extract smoke and hot gases during a fire, improving visibility and enabling safe evacuation. It features a high-temperature rated motor with a cooling system and an axial impeller design for high airflow and stable performance. The dual-speed direct drive supports both daily ventilation and emergency smoke exhaust. With robust construction, low vibration, and flexible installation, it is ideal for high-risk building applications.

Smoke Control Equipment PDF

Technical Specifications

Current: 2 A
Voltage: 220 V
Power Range: 0.09 to 11 kW
Airflow: 675 to 49,500 m³/h
Blade Diameter: 200 mm
Hub Diameter: 280 mm
Noise Level: Approx. 68 dB
Strength: 10 MPa
Performance: High-Temperature Resistant
Customization: Available

Features

Equipped with a high-temperature rated motor and cooling system for continuous operation under fire conditions.
Dual-speed motor, normal ventilation in daily use, high-speed smoke exhaust in fire mode.
Press-formed axial impeller maximizes airflow with stable operation.
Thick steel construction with high-temperature coating for corrosion resistance and long service life.
Supports horizontal or vertical installation for easy duct integration.
Optional control panel for remote and automated operation.
Carbon steel impeller ensures low vibration and easy maintenance.

Installation Precautions

Installation Location: Install in an area accessible for inspection and maintenance.
Secure Mounting: Use proper brackets and supports to minimize vibration and ensure stability.
Duct Compatibility: Ensure proper alignment and sealing to prevent air leakage.
Electrical Safety: Follow wiring standards and install circuit protection (breaker).
Environmental Conditions: Avoid corrosive gases and excessive dust to maintain performance.

Note: Proper installation ensures stable performance, reduced maintenance, and maximum safety in emergencies.
